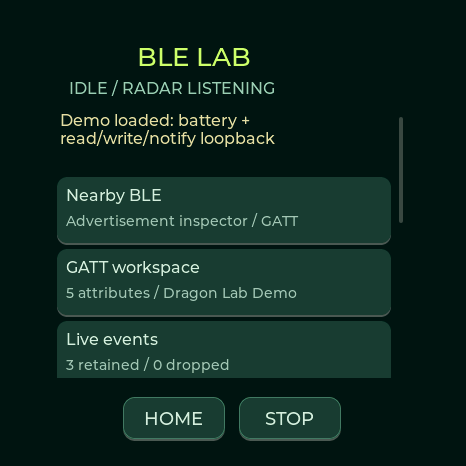

BLE Lab · four full boards

Available on Waveshare AMOLED since 0.9.8 and on M5Stack StopWatch, Spotpear and Seeed XIAO Round in 0.13.0. Open Tools → Recon → BLE Lab, or the web flasher. Existing partition layouts stay unchanged. Lite remains radar-only. 0.13 HID, bridge and storage details.

Workflow

1. Nearby BLE lists recent advertisements, strongest first. Select your peripheral to inspect the address type, age, RSSI and raw advertising structures. Random/private addresses do not identify a manufacturer or a persistent owner. A device may advertise without accepting connections.
2. Connect + discover explicitly opens one BLE connection. The worker discovers primary services, characteristics, descriptors and readable values. Failed/protected reads are marked; pairing is off by default. In 0.11+, enable it before connecting when required. Numeric comparison and passkey entry require explicit input on the device or USB web tools; there is no automatic PIN or unseen approval. Prompts expire after 30 seconds. Protected reads can be retried after a successful secure connection. Radar reception pauses while the connection owns the radio.
3. GATT workspace shows the captured hierarchy. Open a characteristic to read it again, write an allowed characteristic, or subscribe/unsubscribe to notifications/indications. Live events keeps the latest 64 events, with uptime, attribute index and hex bytes. Dropped-event counts are visible.
4. Save workspace uses a unique filename. The browser allows a descriptive name, download/import of .ddg files, loading a saved profile and comparison against the current workspace. Comparison reports added, removed and changed attributes, including property/value changes. Import validates the complete file before replacing the workspace; disk saves use a temporary file and atomic rename and never overwrite an existing name.
5. Emulate profile builds a local connectable GATT peripheral. Confirm Start. A client can read captured values, write writable characteristics and subscribe to their notifications. Use Send current value to notify a subscriber. Local writes are logged as events. Load demo profile provides a synthetic battery service and a read/write/notify characteristic for testing.
6. Stop or Home closes the connection or emulator and restores the previous radar listening state. If radar was deliberately paused before entering the lab, it remains paused. The workspace survives Stop but is volatile until saved. No active lab operation automatically resumes after reboot.

The detector has a single shared 2.4 GHz radio. It cannot provide uninterrupted radar coverage while acting as a GATT central or emulated peripheral. Entering the lab menu alone leaves scanning active. Home always exits active lab work; an in-flight Bluetooth request can take time to finish or fail before cleanup completes.

What is cloned

Application services, characteristic UUIDs/properties and captured initial values, plus readable descriptors. Legacy advertisement and scan-response payloads are reused only when each fits its 31-byte limit; otherwise the emulator generates an advertisement using the profile name and a service UUID. The device retains its own Bluetooth address.

NimBLE owns the GAP/GATT services and CCCD descriptors; duplicate versions are not created from a snapshot. Original attribute handles are recorded as evidence but are not guaranteed in the emulation. Protected permissions, bond keys, identity resolution keys, security handshakes, live sensor behavior and proprietary application logic are not reproduced. An unreadable value is an unavailable snapshot, not a successful read of an empty value. Notifications require a real connected subscriber; emulation does not transmit a captured device's ongoing activity automatically.

This is a GATT profile emulator, not a transparent relay or a complete replacement for the original product. A profile marked partial cannot start emulation.

0.11 expanded BLE tools

• Advertisement details: protocol hints, Bluetooth company/assigned UUID names, appearance, transmit-power fields and public/random address type. Informational sensors do not become radar alerts merely because their protocol is recognized.
• Central writes: response or no-response, only when the characteristic advertises that property. Web/USB accept up to 512 bytes; the touch hex editor accepts 32 bytes. A no-response write confirms queuing, not application acceptance. Long writes remain subject to peer/MTU support.
• Subscriptions and MTU: list active subscriptions, unsubscribe by writing CCCD zero, request MTU 23–517. Negotiated size depends on the peer; it may already have exchanged MTU.
• Pairing: RAM-only enable/MITM/bond policy, explicit secure connection, six-digit passkey and yes/no numeric comparison, status and individual bond removal. Device defaults use authenticated pairing without retaining a bond. Neither keys nor protected access are cloned. Existing unrelated bonds are not cleared.
• HID report layouts: parse captured Report Map bytes into report IDs and input/output/feature bit lengths. Invalid or unsupported maps are marked. This is layout inspection, not a semantic keyboard logger or keystroke injector.
• Legacy advertisement replay: select an observed owned peripheral, then replay its captured advertising/scan-response bytes for at most 30 seconds. Default uses the detector's address. Optional identity replay accepts only a captured random-static address; rotating private/public addresses are rejected. It does not clone keys or reproduce a Find My identity's cryptography. Stop/Home and timeout restore radar.
• Tracker sound request: a connected, discovered AirTag/Find My/DULT characteristic can receive its known sound command. Firmware permissions may reject it; a successful write does not prove an audible sound. The tool does not search for and connect to arbitrary tags automatically.
• Library: remove one selected saved profile; original DDG1 profiles and CRC import/export remain compatible.

Additional USB commands: lab fingerprints, lab select MAC TYPE, lab replay, lab replay identity, lab sound, lab write INDEX HEX, lab writenr INDEX HEX, lab unsubscribe INDEX, lab subscriptions, lab mtu 247, lab hid, lab delete NAME, lab pairing ENABLE MITM BOND, lab secure, lab security, lab passkey 123456, lab confirm yes|no, lab bonds, lab forget MAC TYPE. Inspect lab status after pending operations; the immediate acknowledgement only means the request was queued.

Storage and update safety

Fresh installation initializes both filesystems. Update does not write NVS, badge/history or recon images. On an older 16 MB firmware, the new recon filesystem may initially be unavailable. After a full backup, choose Initialize new BLE storage in the web lab. This one-time action formats only the new upper partition and is rejected once it is mounted; it cannot clear an existing mounted profile library. There is no automatic format on a mount error.

Profiles are stored in /profiles/*.ddg on recon flash. Optional event logs rotate between /events/current.csv and /events/previous.csv, each bounded to 1 MB. Download either log from the web lab. The SD card is not required. Logging starts only when enabled for the current session. Free-space guards protect profile commits and stop logging when space is low.

The current workspace supports 16 services, 64 characteristics, 128 total attributes, 512 bytes per value and 512 advertisement bytes. Larger discoveries are marked partial. Large buffers and the advertisement/event caches live in PSRAM. One connection/workspace is supported at a time. Extra flash increases storage capacity; it does not increase internal RAM or make RSSI a distance measurement.

USB and profile format

The browser shares the existing USB serial session. No cloud upload, account or wireless web server is needed. Stop a lab operation before loading or importing a different profile. Export is a checked sequence of hex chunks; import acknowledges every bounded chunk and verifies CRC before committing.

DDG1 is a versioned little-endian binary format: a 580-byte header followed by up to 128 fixed 559-byte attributes and a trailing CRC32 on disk/download. Header and attribute definitions are in ble_profile.h. The browser validates UUID syntax, address types, lengths and parent relationships independently. CRC detects corruption; it does not authenticate who created a profile.

Diagnostic commands include lab status, lab nearby, lab adverts, lab inspect AA:BB:CC:DD:EE:FF 0 (public) or address type 1 (random), lab read INDEX, lab subscribe INDEX, lab events, lab log on|off, lab save NAME, lab list, lab load NAME, lab compare NAME, lab export, lab demo, lab clone, lab notify INDEX, and lab stop. Use a captured address type rather than guessing it. badge checksum reports the saved badge's length/CRC and startup preference without returning image data.

Attribution and testing

The workflow is inspired by Matthew KuKanich's ChimeraBLE. This is an independent MIT implementation using the project's existing NimBLE/LittleFS dependencies. ChimeraBLE's GPL source and Wireshark-derived OUI database are not bundled. Full credits.

Native tests exercise the profile parser and comparison boundaries. Web tests cover CRC, transport acknowledgements and factory/update separation. test_ble_lab_live.py is an opt-in Windows test using an original synthetic peripheral; it never automatically connects to arbitrary nearby devices. See validation for the actual hardware results and outstanding limits.
